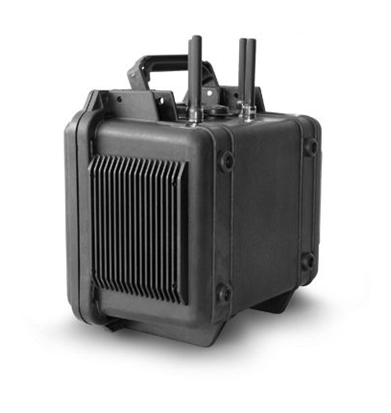

RUGGED COMPUTING UNIT (RCU 040)
TAILORED INTEGRATION
By carefully choosing commercial off-the-shelf hardware components and then combining them into a ruggedized units SHAANK has achieved a significant savings in procurement, development and maintenance while at the same time having the latest high-end product available for system integration into the DSU concept
Protected in a rugged casing and integrated with advanced commercially available processors the RCU 040 is fully capable to handle the state-of-art detecting and tracking algorithms used in the new TRACKER PRO sentry application. This powerful unit can be connected to 2 optical sensors modules simultaneously and process the video feed in real time.
Utilizing the extended networking functions provided in the TRACKER PRO application this unit can be used as a node in a network centric training range. The unit can be passively or actively thermo regulated depending of the configuration. For the actively cooled configuration a custom-loop liquid cooling system is used for the temperature regulation of the CPU and the GPU.
This rugged computing unit combines state-of-the-art CPUs with the latest Graphics Processing Units (GPUs) for unprecedented performance in a compact form factor computer.
Skylake Intel® Core™ i7/i5/i3 Fanless Computer with NVIDIA® GeForce® GPU
Skylake Intel® Core™ processors for high performance applications in rugged environments.
The thermal design of the cooling system helps to effectively dissipate heat generated by the GTX 1050 allowing the system to operate reliably at 60°C under 100% GPU load.
All RCU 040 configurations come with a Solid State Disk (SSD) as standard storage device for reliable performance in demanding environments
RCU 040 comes equipped with 1GigaBit LAN as a standard configuration but a WiFi/Bluetooth connectivity can be provided as per clients request.
Tested with Windows 7 Pro, Windows 10 Pro, Ubuntu 14.04.4/5 LTS, Ubuntu 16.04.0/1 LTS.
| System Core | |
|---|---|
| Processor | Supports 6th-Gen Intel® Core™ LGA1151 CPU - Intel® Core™ i7-6700 (8M Cache,3.4/4.0 GHz, 65W TDP) - Intel® Core™ i5-6500 (6M Cache, 3.2/3.6 GHz, 65W TDP) - Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP) - Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP) |
| Chipset | Intel® Q170 Platform Controller Hub |
| Graphics | Independent nVidia® GPU (75W TDP) or Integrated Intel® HD 530/510 Controller |
| Memory | Up to 32 GB DDR4-2133 SDRAM (dual SO-DIMM sockets) |
| AMT | Supports AMT 11.0 |
| TPM | Supports TPM 2.0 |
| Storage Interface | |
|---|---|
| SSD HDD | 2x internal SATA port fors 2.5" HDD/SSD installation, supporting RAID 0/1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
Would you like to receive a price quotation? Please send us an e-mail
